詳細信息

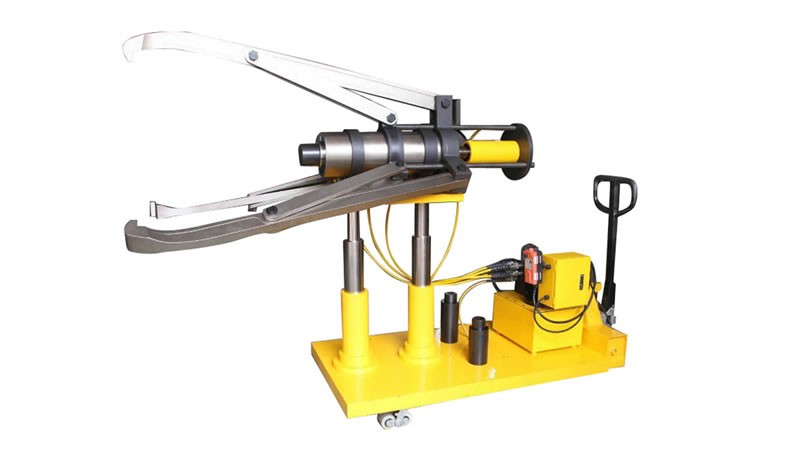

KD Series Fully Automatic Vehicle-mounted Hydraulic Lama.
產品特點：
Product characteristics:
雙作用液壓設計，應用于大型軸類，孔類工件的拆卸；
Dual-acting hydraulic design is applied to the disassembly of large shaft and hole workpieces.
輪式小車方便移動，可隨時更換工作場所；
Wheeled car is easy to move and can change workplace at any time.
手動控制小車升降、夾緊工件及拉拔裝置；
Manual control car lifting, clamping workpiece and drawing device;
50T-200T有短爪和長爪可選擇；
50T-200T has short claws and long claws.
配有液壓升降系統，可方便準確的定位拔輪
Equipped with hydraulic lifting system, it can locate and pull wheels conveniently and accurately.
-
系統選型表
技術參數：
KD系列全自動車載式KD系列液壓拉馬選型表
KD Series Hydraulic Lama Selection Table：
型號
Model
負載（T）
load
行程
Trip
拆卸范圍
Scope of disassembly
工作壓力（MPA）
Working pressure
KD-50
50
337
100-1220
70
KD-100
100
200
200-1000
70
KD-200
200
250
300-1500
70
KD-300
300
300
400-1800
70
KD-500
500
350
500-2000
70
KD-630
630
350
500-2000
70
KD全自動車載式液壓拉馬
KD系列全自動車載式液壓拉馬：雙作用液壓設計，應用于大型軸類，孔類工件的拆卸；輪式小車方便移動，可隨時更換工作場所；手動控制小車升降、夾緊工件及拉拔裝置；
